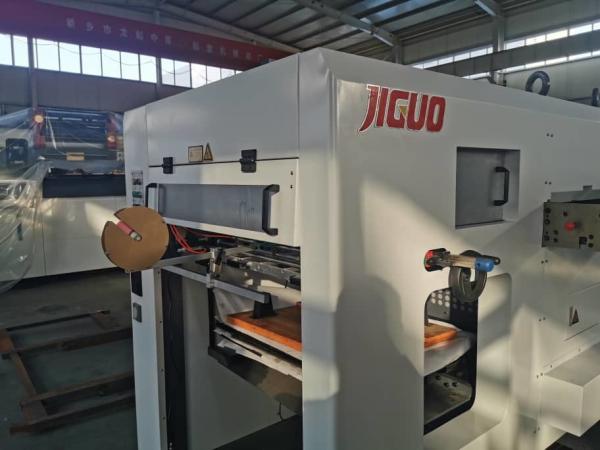

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine
Products Description
| PARAMETER |
| Model | MY-1320E | MY-1500E | MY-1680E |
| Max. sheet size | 1320X960(mm) | 1500X1105(mm) | 1680X1235(mm) |
| Min. sheet size | 450X400(mm) | 500X420(mm) | 580X500(mm) |
| Max. die cutting size | 1300X940(mm) | 1480X1090(mm) | 1660X1220(mm) |
| Max.cutting speed | 6000s/h | 5000s/h | 4500s/h |
| Die cutting precision | ±0.15mm | ±0.18mm | ±0.2mm |
| Sheet thickness | 200-2000g/㎡(Cardboard) ≤8mm(corrugated board) | 250-2500g/㎡(Cardboard) ≤8mm(corrugated board) | 250-2500g/㎡(Cardboard) ≤8mm(corrugated board) |
| Max.pressure | 380T | 400T | 480T |
| Total power | 20kw | 20kw | 20kw |
| Net weight | 18T | 20T | 23T |
| Overall dimension | 7500X4600X2260mm | 7990X5100X2260mm | 8900X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage
- Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.
- Automatic pressure control make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.
- Taiwan high-pressure oil pump, use crush type for lubrication, reducing parts attrition and increasing oil temperature cooler to lubricant for cooling, on the main chain for regular lubrication, improve equipment efficiency.
- It has novel drive mechanism, execute high-speed die-cutting, high accuracy of swinging rod platform and improve the pad speed (almost don't need mat), we should know, a lot of manufacturers exist pressure uneven problem.
- Pneumatic locking plate device has firmer upper frame, saving time. Our company produces the die-cutting machine simultaneously to nether frame around for air lock, leading to strong accuracy, speed fast. All other manufacturers are just using screw fastening.
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
